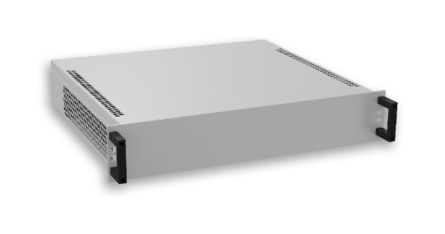

THÔNG SỐ KỸ THUẬT CỦA Air / water heat exchanger – RK 2192 (Bộ trao đổi nhiệt không khí/nước – RK 2192):
| Cooling capacity L35W10 (200 l/h) | 1 kW |
| Cooling capacity L35W10 (500 l/h) | 1.2 kW |
| Refrigerant / GWP | Water, light oils or similar |
| Operating Temperature Range | 1°C – 72°C |
| Air flow volume (system / unimpeded) | 165 / 575 m³/h @ 50 Hz 180 / 625 m³/h @ 60 Hz |
| Mounting | 19″ mounting |
| Dimensions A x B x C (D+E)
A = Height | B = Width | C = Depth |
89 (2U) x 443 x 408 mm |
| Weight | 13 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Starting current | 1 A |
| Max. current | 0.4 A |
| Max. power | 90 W |
| Pressure water circuit | 10 bar |
| Water connection | Rp 1/4” – inside thread with 2 connectors for pipe internal diameter of 10 mm. OUTLET (female) & INLET (male) flexible tube for RK/LW 1/4” thread, 510 mm length |
| Fuse | 4 A (T) |
| Short-circuit current rating | 5 kA |
| Connection | Plug |
