THÔNG SỐ KỸ THUẬT CỦA SOLITHERM PELTIER – TG 6205:
| Cooling capacity L35L35 | 200 W |
| Operating Temperature Range | -20°C – 70°C |
| UL temperature range | -20°C – 65°C |
| Air flow volume (system / unimpeded) | Ambient air circuit: 106 / 260 m³/h Cabinet air circuit: 150 / 260 m³/h |
| Mounting | Recessed |

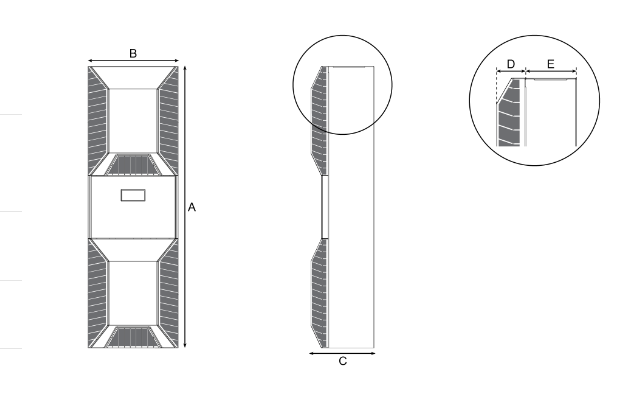

| Dimensions A x B x C (D+E)
A = Height | B = Width | C = Depth |
500 x 333 x 181 (113+68) mm |
| Weight | 17.2 kg |
| Cut out dimensions | 472 x 302 mm |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Current L35L35 | 1.1 A |
| Starting current | 1.7 A |
| Max. current | 1.2 A |
| Nominal power L35L35 | 250 W |
| Max. power | 270 W |
| Fuse | 3 A (T) |
| Connection | 4 pole power connector 5 pole connector for signals |
